FF2 PARTS LIST
The FF2 luff extrusion has two grooves, one facing forward (for the halyard) and one facing aft (for the sail). The extrusion measures .6" x 1.4". The diameter of the cup and spool is 4".

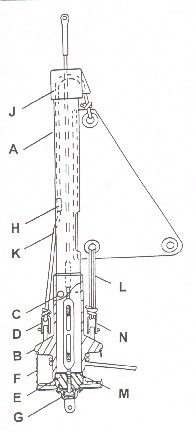

		Ref.	Description	Part #	Price
		A	Luff Extrusion	LFF2	190
		B	Spool Assembly	2010	140
		C	Luff Support Pin (3/16" x 1 7/8")	2009	6
		D	Downhaul/Halyard Shackle**	2007	8
			Shackle Pin	1998	5
		E	Main Bearing	1033	25
			Ball Bearing	BB2	75
		F	Cup (Stainless Steel)	1807	60
		G	Antirotation Strap	1081	10
		H	Halyard 1/4" x 34' w/ ferrule*	1932	60
		J	Halyard Top Fitting	2011	40
		L	Tack Tension Line	11921	4
		M	Thrust Washer	1253	10
		--	Instruction Manual	1049	--

FF2 Design Changes

* 1997 New Halyard -- The 3/16 rope halyard with molded-on black plastic traveller has been replaced by part # 1922. The new halyard (1922) uses a 1/4" rope with a stainless steel ferrule swaged on. Both halyards function in the same way and are interchangable.

** 1998 Downhaul/Halyard Shackles -- The eyemount where the halyard is made fast has been replaced by a shackle that stands on the top flange of the spool. The eyemount is still available (part # 1422, $7).
